Echelon Workplaces

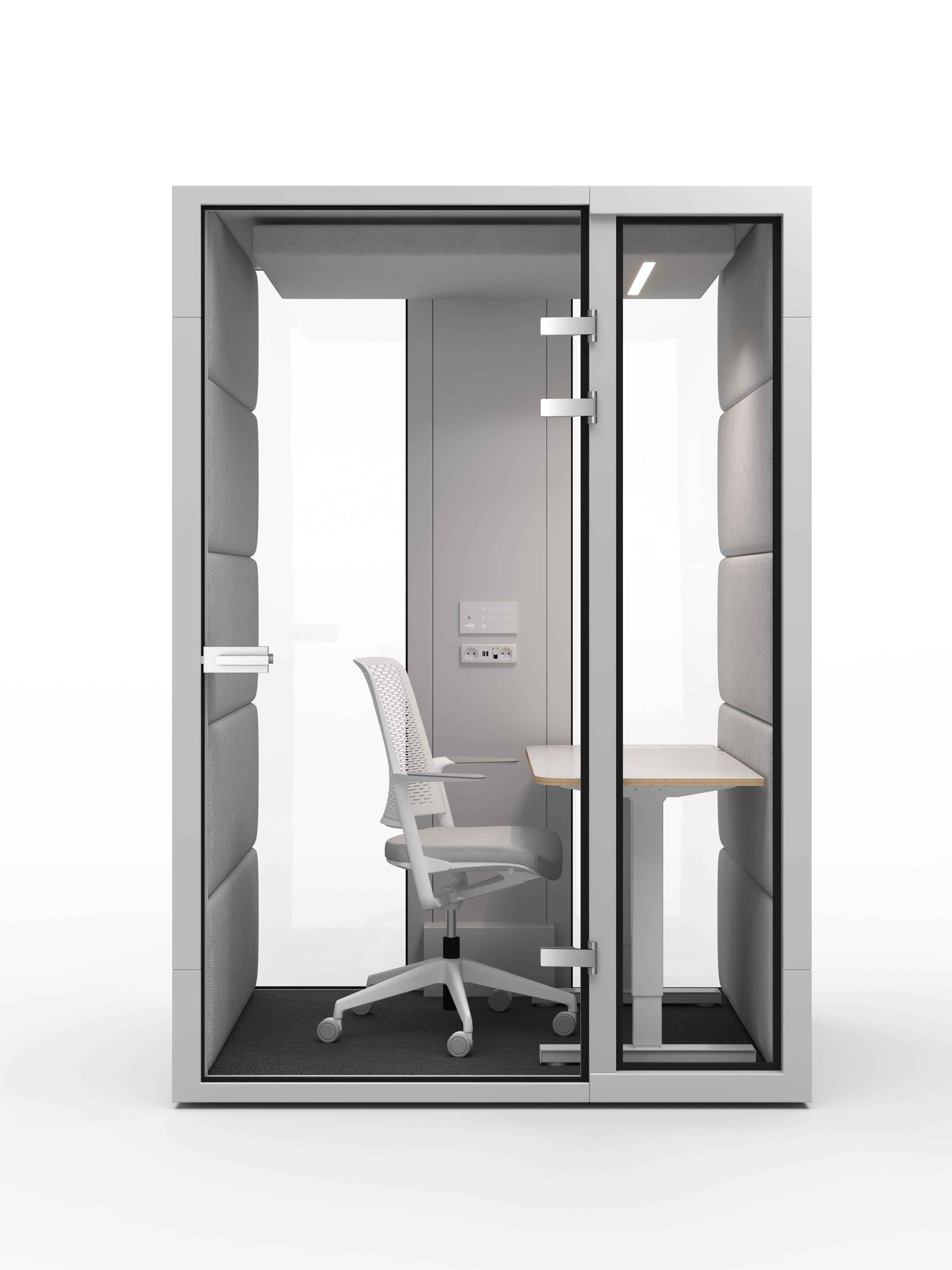

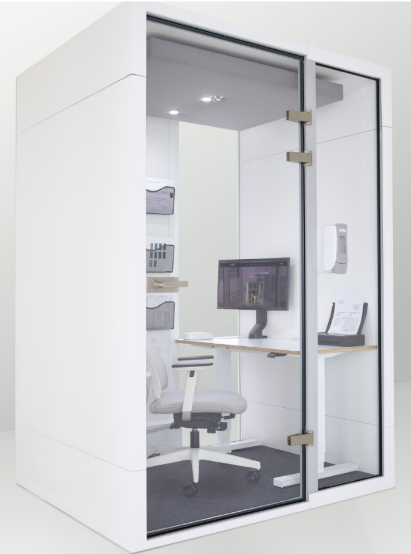

M PRO OFFICE

M PRO OFFICE

Color

quipped with everything you will need to work in the highest standard of comfort: efficient ventilation, electrical sockets, USB ports, a practical Sit Stand desk, a control panel for booth settings. Perfect place to work  away from the hustle and bustle of the office.


Soundproofing

Special soundproofing material hidden in the walls and almost 5 m² of bass traps inside the booth mean excellent soundproofing parameters and an absolutely "echo free" booth. When you enter it, you will simply hear silence. You can focus on the conversation or take a break from the noise outside. The speech level reduction (DS,A) of S Pro Pod is  33 dB. This makes the IMIN Pod one of the leading acoustic booths on the market.


Touch control panel

The touch regulator -  placed on the back wall, at arm's height - allows you to change the color temperature of the light, its intensity, as well as the level of ventilation. Set the configuration permanently or play with the regulator while using the pod.

LED 11W, 200-1200 lm, 3000-6000K


Customisable colour

You can choose any colour for your pod from the RAL or NCS palette. Giving you a whole lot of possibilities - what is important - without additional costs. Only with us you can perfectly match the color of the booth to the style of your office.


Air Flow

Fitted with two  fans. Airflow: max. 200m3/h/pcs, smooth speed control: 10-100%

Desk

Dual Sit Stand Desk allows to allows you to easily change your position from sitting to standing. Distinguished by low power consumption and quiet and smooth operation of the system. Available in three colours: white, grey, black.

Available Sizes 1000×600, 1200×600, 1400×600, 1600×600, 1 800×600550 mm do 650 mm . Height: 620 – 1270 mm. INAK CBD6 0.1W control box, LINAK DPG1M control panel– up/down. Anti Collision sensor.                                                                                                                                                                 Built-in BLUETOOTH module, free “Desk Control” application for android, iOS, Windows 10


Interior material

Acoustic panels (bass traps) upholstered with Milos Davis fabric, lacquered MDF (lacquer with PZH certificate)

Ceiling: bass trap finished with certified acoustic fabric, LED linear luminaire

Floor: acoustic lining with anti-knock underlayment

Exterior material

Lacquered MDF (RAL or NCS palette), covered with a transparent protective varnish.Glued glass (foil); 5+5mm (total thickness 11mm)


Mediaport

Elegant mediaport with  2 x  230V and  2 x USB socket are enough for two people and various devices: laptops, smartphones, headphones. Charge them with energy. Preferably positive.

Power

Input: 240 VAC, 6.0 A, 50–60 Hz

Output VAC (table socket): 6A-250V

USB Charging: USB 230V/5 V; 1500mA
