L PRO BOOTH

Four person customisable acoustic booth

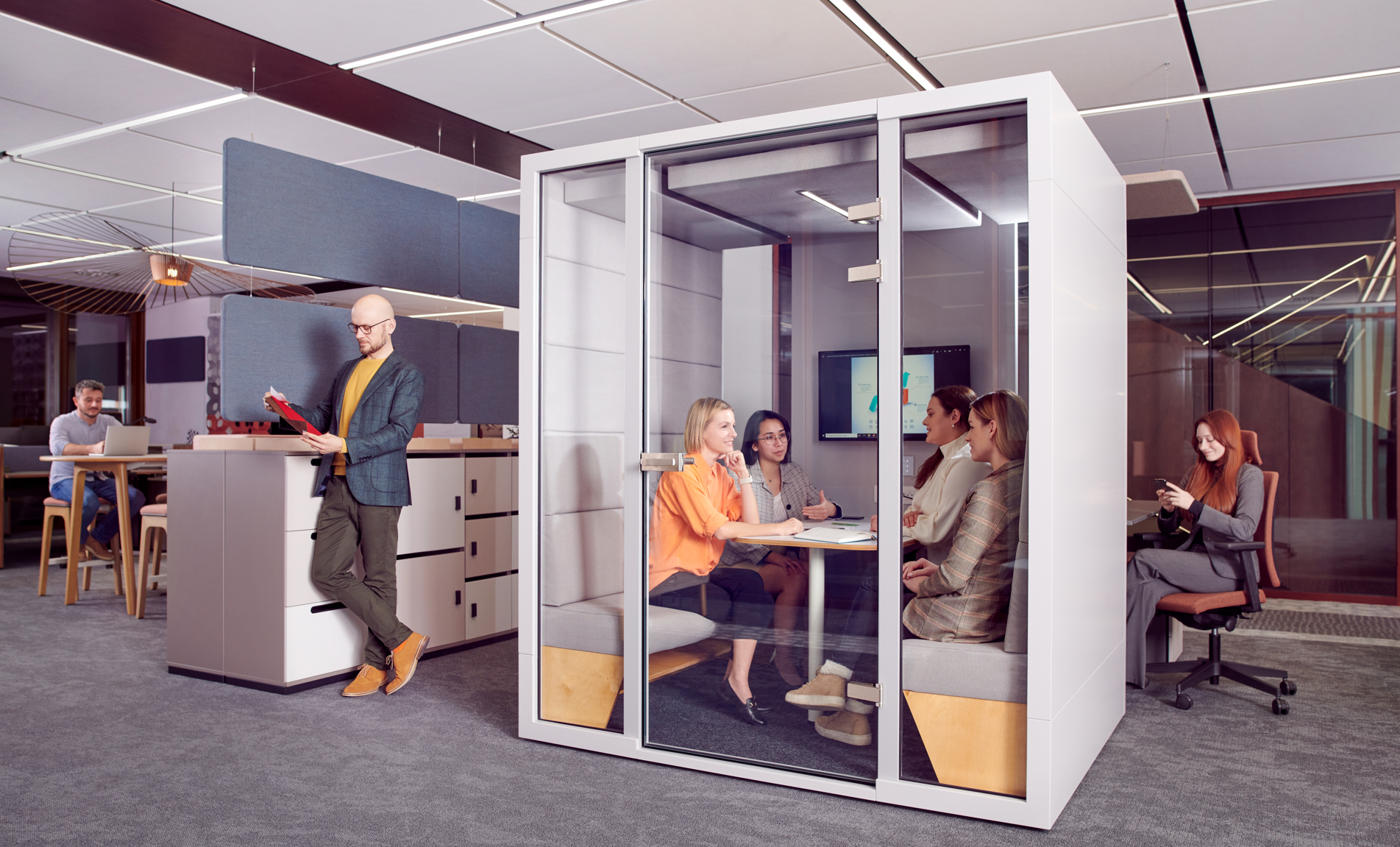

The soundproof, mobile L conference room has been designed as a 4-person conference room, but it can easily accommodate up to 6 users. A soundproofed office space will improve the well-being of people using the booth, thus increasing their work efficiency. This pod is a 100% mobile piece of furniture, easy to relocate when needed.

Soundproofing

Special soundproofing material hidden in the walls and almost 5 m² of bass traps inside the booth mean excellent soundproofing parameters and an absolutely "echo free" booth. When you enter it, you will simply hear silence. You can focus on the conversation or take a break from the noise outside. The speech level reduction (DS,A) of S Pro Pod is  33 dB. This makes the IMIN Pod one of the leading acoustic booths on the market.

Touch control panel

The touch regulator -  placed on the back wall, at arm's height - allows you to change the colour temperature of the light, its intensity, as well as the level of ventilation. Set the configuration permanently or play with the regulator while using the pod.

LED 11W, 200-1200 lm, 3000-6000K

Customisable colour

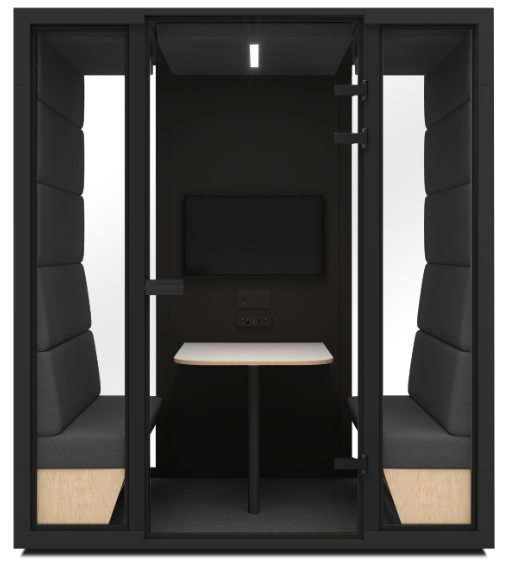

You can choose any colour for your pod from the RAL or NCS palette. Giving you a whole lot of possibilities - what is important - without additional costs. Only with us you can perfectly match the colour of the booth to the style of your office.

Air Flow

Fitted with two  fans. Airflow: max. 200m3/h/pcs, smooth speed control: 10-100%

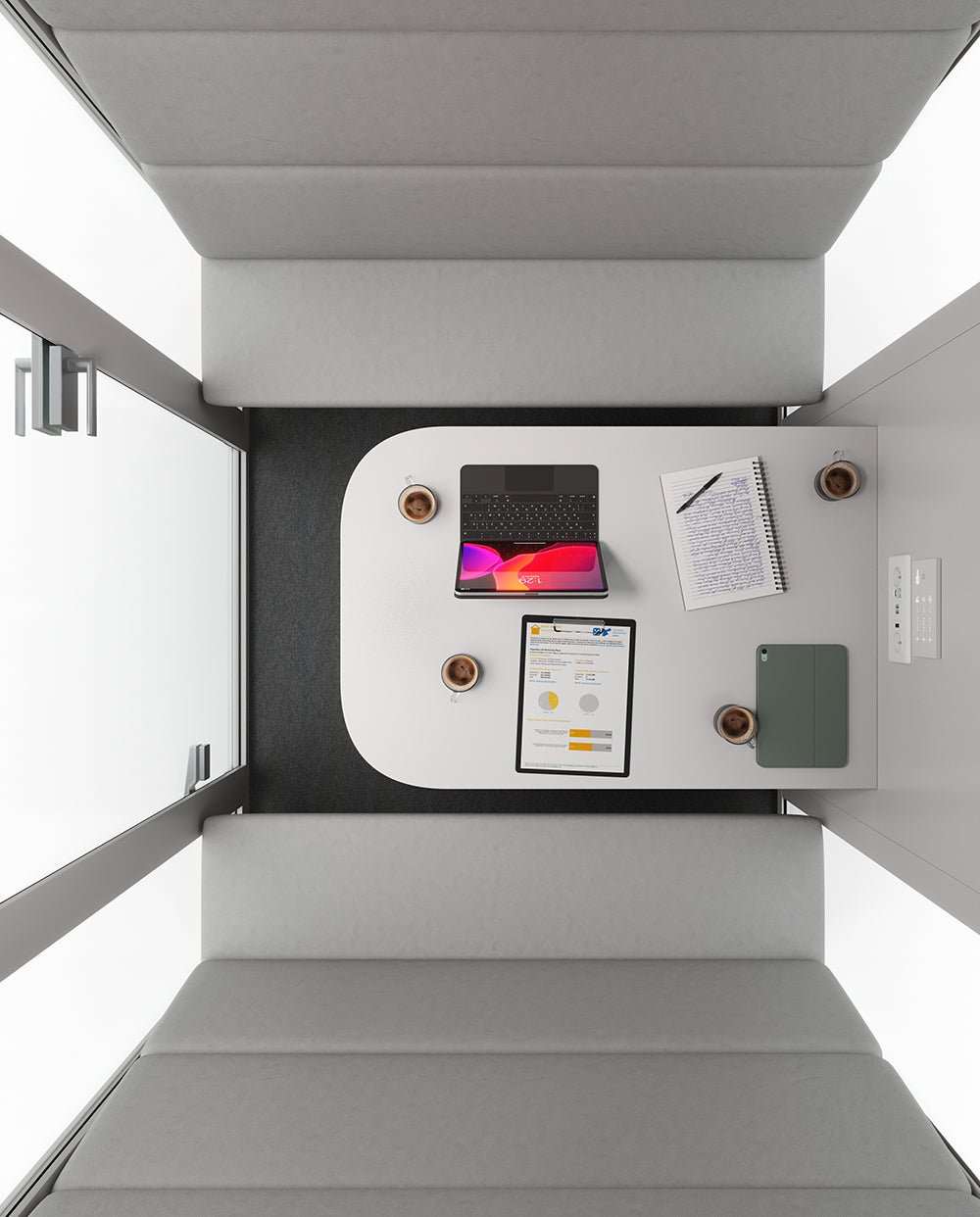

Table and Seating

Upholstered seats and a wide table comfortably accommodate 4 people with all their work tools. The backrests are ergonomically profiled. If the meeting in the acoustic booth gets longer, your sitting comfort will remain as it was at the beginning.

Table Material: Decorative plywood with laminate layer.. Length 1100 mm, height 400 mm, depth 700 mm.

Seat 2 pcs., length 1300 mm , height 500 mm, depth 450 mm..

Backrest 2 pcs., length 130 cm, height 55 cm, depth 1-7cm

Interior material

Acoustic panels (bass traps) upholstered with Milos Davis fabric, lacquered MDF (lacquer with PZH certificate). Ceiling: bass trap finished with certified acoustic fabric, LED linear luminaire

Floor: acoustic lining with anti-knock underlayment

Exterior material

The glass windows in the soundproof office room are double, tempered and glued (foil); 5+5mm (total thickness 11mm). This supports their acoustic properties, and also directly affects the safety of use. A standard several levels higher than required by strict European standards.

Exterior in lacquered MDF (RAL or NCS palette), covered with a transparent protective varnish.

Mediaport

Elegant mediaport with  2 x  230V and  2 x USB socket are enough for two people and various devices: laptops, smartphones, headphones. Charge them with energy. Preferably positive.

Power

Input: 240 VAC, 6.0 A, 50–60 Hz

Output VAC (table socket): 6A-250V

USB Charging: USB 230V/5 V; 1500mA

External dimensions H 2280, L 1600, W1320 mm
